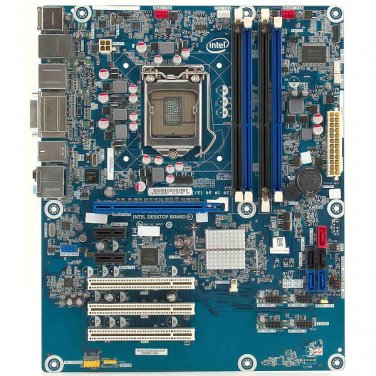

Add to FavoritesSign up for our NewsletterMost orders ship in 24 hours:HomeAbout usFeedbackPayment OptionsShipping InfoContact usStore search:Store categoriesIntel DZ68DB Desktop Board G27985-104 Socket LGA1155 PCI PCIe x1 x16 HDMI DisplayPort DVI-I SystemboardClick on above image to view full pictureClick on above image to view full pictureClick on above image to view full pictureClick on above image to view full pictureClick on above image to view full pictureClick on above image to view full pictureMore views: Manufacturer Intel Model number DZ68DB MPN BLKDZ68DB AA Revision G27985-104 BIOS revision DBZ6810H.86A.0032 SKU MBIT007 Package Condition New, OEM Contents Systemboard, I/O shield, 2x SATA cables, CD, label Warranty 30 days SpecificationsNew Page 3 Form factor ATX Socket LGA1155 Memory Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333 MHz and DDR3 1066 MHz DIMMs Support for 1 Gb, 2 Gb, and 4 Gb memory technology Support for up to 32 GB of system memory with four DIMMs using 4 Gb memory technology Support for non-ECC memory Support for 1.35 V low voltage JEDEC memory Chipset Intel Z68 express chipset Graphics Integrated graphics support for processors with Intel HD Graphics Connectors HDMI, DVI-I, DisplayPort Audio 10-channel (7.1 + 2) Intel High Definition Audio via the Realtek ALC892 audio codec including: -Front panel audio header with support for Intel HD Audio and AC ’97 Audio -Five analog audio jacks on the back panel -Onboard S/PDIF out header and back panel optical S/PDIF out connector 8-channel (7.1) Intel HD Audio via the HDMI interface Peripheral Interfaces • Two USB 3.0 ports are implemented with stacked back panel connectors (blue) • Fourteen USB 2.0 ports: ― Six ports are implemented with stacked back panel connectors (black) ― Eight front panel ports implemented through four internal headers • Two SATA 6.0 Gb/s interfaces through Intel Z68 Express Chipset with Intel Rapid Storage Technology RAID support (blue) • Four Serial ATA (SATA) 3.0 Gb/s interfaces through Intel Z68 Express Chipset with Intel Rapid Storage Technology RAID support: ― Two internal SATA ports (black) ― One internal eSATA port (red) ― One back panel eSATA port (red) • Two IEEE 1394a ports: ― One port via a back panel connector ― One port via an internal header for front panel cabling Expansion bays One PCI Express 2.0 x16 add-in card connector Two PCI Express 2.0 x1 add-in card connectors Three Conventional PCI bus connectors Detailed specification Payment OptionsShipping InfoReturn PolicyContact usNew Page 1 New Page 1 New Page 1 New Page 1 HomeAbout usFeedbackPayment OptionsShipping InfoContact usFind us on FacebookFollow us on TwitterAll rights reserved. Copyright © Compeve CorporationeCRATER Listing Template Design by: Corido online
