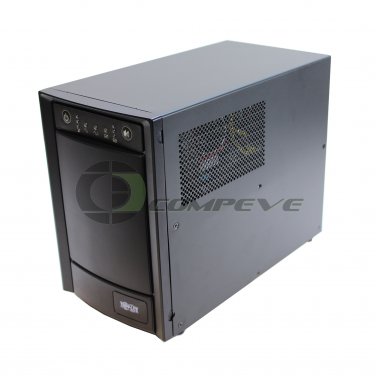

750VA line-interactive tower UPS system for server, networking and telecommunications equipment. Supports extended runtime with optional BP24V28-2U and BP24V70-3U external battery packs. Compatible with 120V, 110V or 100V nominal voltage at 60Hz. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost during brownouts and voltage cut during overvoltages to maintain regulated output during brownouts and overvoltages. Includes NEMA 5-15P input plug and 8 NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Network management via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software and complete cabling. Features 3-stage load current monitoring and battery charge status, plus line power and voltage boost/cut status LEDs. Dataline surge suppression protects dialup, DSL or network Ethernet connection. Audible alarm. Self-test. Field replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. Power SupplyDevice Energy Rating:570 JoulesDevice Output Connector Type:Power NEMA 5-15BatteryEnclosure Type:InternalLoad Type:At full loadRecharge Time:4.5 hoursRun Time (Up To):10 minPower Output Connectors DetailsConnector Qty:8Connector Type:Power NEMA 5-15Interface ProvidedConnector Type:4 pin USB Type BInterface:USBQty:1Type:MonitoringConnector Type:9 pin D-Sub (DB-9)Interface:RS-232CableConnectivity Details Length:6 ftConnectivity Details Type:Power cableConnectivity Details Type:USB cableConnectivity Details Type:Serial cableDataline Surge ProtectionConnector Type:RJ-45Type:Network/phone lineEnvironmental ParametersHumidity Range Operating:0 - 95%Max Operating Temperature:104 °FMin Operating Temperature:32 °FHeaderBrand:Tripp LiteCompatibility:Mac , PCManufacturer:Tripp LiteModel:UPS Smart 750VA 500W Tower AVR 100V-120V Pure Sign Wave USB DB9 SNMP RJ45Packaged Quantity:1Product Line:Tripp LiteMiscellaneousColor:Attractive blackColor Category:BlackCompliant Standards:CSA , FCC Class B certified , FCC Part 68 , NOM , RoHS , UL 1778Equipment Protection Value:250000 US DollarsPower DeviceForm Factor:ExternalFrequency Provided:60 HzFrequency Required:60 HzInput Connector Qty:1Input Connector Type:Power NEMA 5-15Input Voltage Range:AC 83 - 145 VOutput Connector Qty:8Power Capacity (VA):750 VAPower Device Features:Audible alarm , Automatic Voltage Regulation (AVR) , LED indicatorsPower Provided:500 WattSurge Suppression:YesUPS Output Waveform:SinewaveUPS Technology:Line interactiveVoltage Provided:AC 100/110/120 VVoltage Provided Margin:+ 6% / - 10%Voltage Required:AC 100/110/120 VSlot ProvidedFree Qty:1Total Qty:1Type:Expansion slotSoftwareType:TrippLite PowerAlertDimensions & WeightDepth:13.8 inHeight:10.1 inWeight:33.95 lbsWidth:6.7 inCable DetailsForm Factor:IntegratedIncluded Qty:1Dimensions & Weight (Shipping)Shipping Depth:23.7 inShipping Height:13 inShipping Weight:37 lbsShipping Width:10 inGeneralProduct Type:UPSSubcategory:UPSRun Time DetailsLoad Type:Full loadRun Time (Up To):10TitleTripp Lite SMART750XLA 750VA 500W UPS Smart Tower AVR 100V-120V USB#ConditionSeller refurbished, like newContentUPS unit, accessoriesManufacturerTripp LiteModelSMART750XLASKUUPTI068 #1060_100UPC683728195939http://www.compeve.com/Products/UPS/TrippLite/SMART750XLA/SMART750XLA_compeve__1.jpghttp://www.compeve.com/Products/UPS/TrippLite/SMART750XLA/SMART750XLA_compeve__2.jpghttp://www.compeve.com/Products/UPS/TrippLite/SMART750XLA/SMART750XLA_compeve__3.jpgg6>,RcmdId ViewItemDescV4,RlogId p4%60bo7%60jtb9%3Fuk%601d72f%2B%3Eg6%3E-1578ee6a43f-0x119-->
