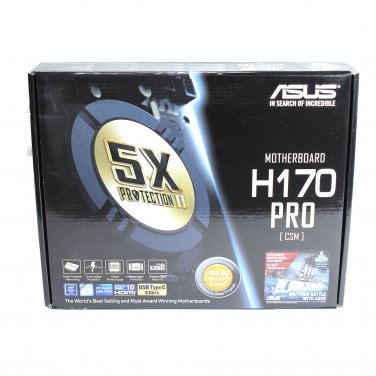

ModelBrandASUSModelH170-PRO/CSMSupported CPUCPU Socket TypeLGA 1151CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)Supported CPU TechnologiesTurbo Boost Technology 2.0ChipsetsChipsetIntel H170Onboard VideoOnboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics supportMulti-VGA output support: HDMI/DVI-D/RGB port- Supports HDMI with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz- Supports DVI-D with max. resolution of 1920 x 1200 @60Hz- Supports RGB with max. resolution 1920 x 1200@60HzSupports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/InsiderSupports up to 3 displays simultaneouslyMaximum shared memory of 512MBMulti-GPU Support:Supports AMD CrossFireX TechnologyMemoryNumber of Memory Slots4×288pinMemory StandardDDR4 2133Maximum Memory Supported64GBChannel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x161 x PCI Express 3.0/2.0 x16 slot (at x16 mode)1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices)PCI Express x12 x PCI Express 3.0/2.0 x1 slotsPCI Slots2 x PCI SlotsStorage DevicesSATA 6Gb/s6 x SATA 6.0 Gb/s ports (gray, 2 from SATA Express)SATA Express1 x SATA Express port (compatible with 2 x SATA 6.0 Gb/s ports)M.21 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)SATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek ALC887Audio Channels8 ChannelsOnboard LANLAN ChipsetRealtek 8111HMax LAN Speed10/100/1000MbpsRear Panel PortsPS/21 x PS/2 keyboard port1 x PS/2 mouse portVideo Ports1 x DVI-D portHDMI1 x HDMIRJ451 x LAN (RJ45) portsUSB 3.02 x USB 3.0/2.0 ports (blue, Type A)USB 1.1/2.02 x USB 2.0/1.1 ports1 x USB 5Gb/s Type C portAudio Ports3-Jack 8-Channel Audio I/O portsInternal I/O ConnectorsOnboard USB2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)2 x USB 2.0/1/1 connectors support additional 4 USB portsOther Connectors1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control1 x Front panel audio connector1 x System panel connector (Chassis intrusion header is inbuilt)1 x S/PDIF out header1 x 24-pin EATX Power connector1 x 8-pin EATX 12V Power connector1 x COM header1 x TPM Header1 x Clear CMOS jumper* The CPU Q-Fan control setting is set as default in Auto mode for detecting the type of CPU fan installed and switches to the control mode automatically.Physical SpecForm FactorATXDimensions (W x L)12.0" x 8.8"Power Pin24 PinFeaturesFeaturesASUS Special FeaturesASUS 5X PROTECTION II- ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection - World-class circuit-protecting power design- ASUS DIGI+ VRM - 4+2+1 Phase digital power design- ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!Superb PerformanceM.2 onboard - The latest transfer technologies with up to 32Gb/s data transfer speedsSATA Express onboard - The latest transfer technologies with up to 16Gb/s datatransfer speedsASUS Fan Xpert 3 - Featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlASUS EPU - EPUPC Cleaner - Fast and easy way to get rid of unnecessary junk filesUEFI BIOS - Most advanced options with fast response timeUSB 3.0 Boost - featuring speedy USB 3.0 transmissionGaming ScenarioAudio Features - Audio that roars on the battlefieldMedia Streamer- Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go!- Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systemsASUS Exclusive Features- ASUS Ai Charger- ASUS AI Suite 3- ASUS Disk Unlocker featuring 3TB + HDD supportEZ DIYPush Notice - Monitor your PC status with smart devices in real timeUEFI BIOS EZ Mode- featuring friendly graphics user interface- ASUS CrashFree BIOS 3- ASUS EZ Flash 3Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Quiet Thermal SolutionQuiet Thermal Design:- ASUS Fan Xpert 3- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink solutionBIOS128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD memory informatTitleASUS H170-PRO/CSM LGA 1151 Intel H170 USB 3.0 ATX MotherboardConditionNew, open box (actual images)ContentMotherboard, accessoriesManufacturerAsusModelH170-PRO/CSMSKUMBAS002 #1089_1UPC889349114452http://www.compeve.com/LISTING_IMAGES/Computer_Parts_And_Components/Motherboards/Asus/H170-PROCSM/G9M0CS113176_1.jpghttp://www.compeve.com/LISTING_IMAGES/Computer_Parts_And_Components/Motherboards/Asus/H170-PROCSM/G9M0CS113176_2.jpghttp://www.compeve.com/LISTING_IMAGES/Computer_Parts_And_Components/Motherboards/Asus/H170-PROCSM/G9M0CS113176_3.jpg
